Temperature Control | Infrared Sensor Or Thermcouple | Inductance Range | 2.2-300uH |
---|---|---|---|
Weight | 22kg | Input Power | 20KVA |
Machine Type | Induction Heating Machine | Output Frequency | 3-15KHz |
Control Model | Digital Control | Dimension | W: 262.4mm H: 304mm D: 545mm |
Product Description:

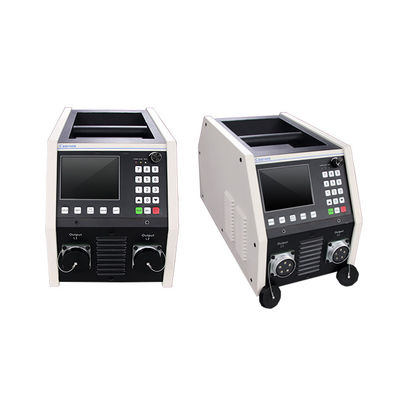

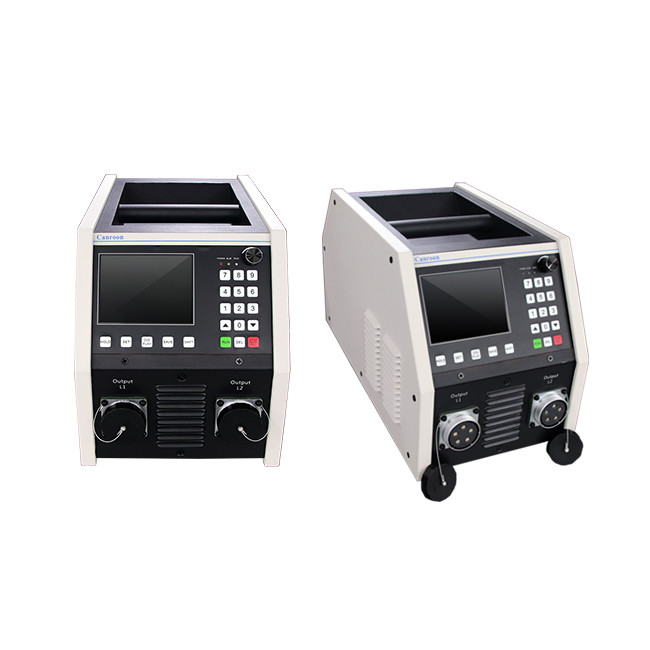

The CR2000 Series PWHT Machine delivers industrial-grade performance with its 20KVA power input and Infineon IGBT technology, ensuring stable operation even for demanding heat treatment processes. Featuring an adjustable 3-15KHz output frequency and multiple control modes (Manual/Auto/PID), it provides precise temperature control up to 1300°C. The air-cooled design eliminates water cooling requirements while the lightweight (22kg) construction enables easy portability. Operates on 3-phase 400V (±20%) power with 24-36A input current and 2.2-300uH inductance range.
Features:
- Product Name: PWHT Machine
- Control Model: Digital Control
- Cooling Method: Air Cooling
- Output Power: 18KW
- Temperature Control: Infrared Sensor Or Thermcouple
- Input Current: 24-36A
- Professional applications
- Monitoring of run status and fault protection
Technical Parameters:
Input Voltage | 3phase 400V(+20%) |
Temperature | 788℃ |
Control Model | Digital Control (Multiple control mode built-in, Advanced system integration) |
Weight | 22kg |
Inductance Range | 2.2-300uH (Heating with Clamp-type Inductor) |
Output Power | 18KW |
Machine Size | 262.4*304*545mm |
Application | PWHT |
Igbt | Infineon IGBT |
Temperature Control | Infrared Sensor Or Thermcouple |
Applications:
Specifically engineered for critical industrial heat treatment applications:
- Stress relieving of pipelines (API/ASME compliant)
- Post-weld treatment of pressure vessels and boilers
- Annealing processes in power generation equipment
- Petrochemical plant maintenance operations
- Weekly production capacity: 2000 units.
Customization:
Brand Name: Canroon
Model Number: CR2000
Place of Origin: Shenzhen, China
Certification: CE ISO9001
Minimum Order Quantity: 1
Price: Negotiated price
Packaging Details: wooden box
Delivery Time: 7-15 days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 2000 Piece/Pieces per Week
Intput Current: 24-36A
Cooling Method: Air Cooling
Output Power: 18KW
Inductance Range: 2.2-300uH
Temperature: 788℃
Advanced system integration, Heating with Clamp-type Inductor, CR2000 series - the rightful choiee of an intelligent, safe, clean and ranid heating
FAQ:
What is the brand name of the PWHT Machine?
The brand name of the PWHT Machine is Canroon.
2.What is the model number of the PWHT Machine?
The model number of the PWHT Machine is CR2000.
3.Where is the PWHT Machine manufactured?
The PWHT Machine is manufactured in Shenzhen, China.
4.What certifications does the PWHT Machine have?
The PWHT Machine has CE and ISO9001 certifications.
5.What is the minimum order quantity for the PWHT Machine?
The minimum order quantity for the PWHT Machine is 1.
6.What is the price of the PWHT Machine?
The price of the PWHT Machine is negotiated.
7.How is the PWHT Machine packaged?
The PWHT Machine is packaged in a wooden box.
8.What is the delivery time for the PWHT Machine?
The delivery time for the PWHT Machine is 7-15 days.
9.What are the payment terms for the PWHT Machine?
The payment terms for the PWHT Machine are L/C, T/T, Western Union, and Paypal.
10.What is the supply ability of the PWHT Machine?
The supply ability of the PWHT Machine is 2000 Piece/Pieces per Week.
